Relay nodes are fully functional ChatterBox mesh nodes, with the added benefit of being able to control a circuit with a built-in relay switch. Any node may be converted to a relay node by adding the relay component as described here.

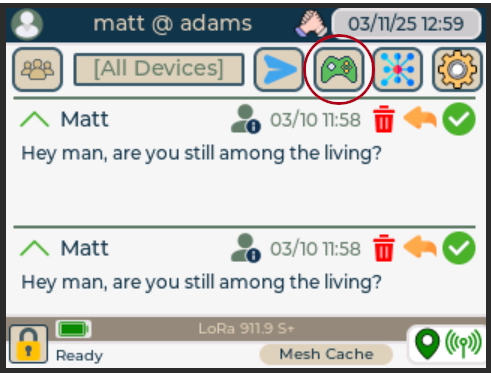

1. On the Home Screen, Choose the Commands button (game controller) |

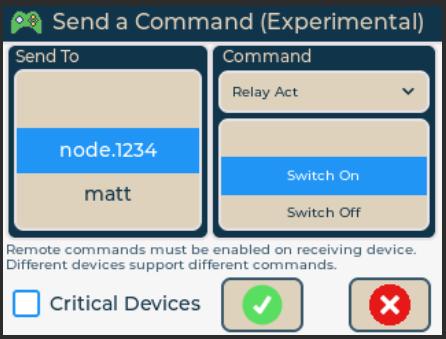

2. Select a device which has a relay switch onboard |
| 3. Choose a command and send it After your command is received and acknowledged, it will be executed (if enabled on the recipient device). |
| Relay Command | Description |
|---|---|
| Switch 5 Sec | Set the relay switch to “on” for 5 seconds, and then switch back off. |
| Switch On | Set the relay switch to “on” until device reboot (or until switched back off). |
| Switch Off | Set the relay switch to “off” until device reboot (or until switched back on). |
